Home > Products > Special truck > Foton Auman 4×2 watering truck 10, 000L water barrow sprinkler
Market Price: from $38,000
Series: GTL/EST
Usage scenario: watering truck/road sprinkler/water barrow/water car/sprinkler
Max Power: 240
Drive Type: 4X2
Wheelbase(mm): 5150
Engine/Battery: YC6A240-33 (Yuchai)
Transmission: Fast Gear 8JS105TA
| Basic Project | Name | Description |
| Basic Information | Drive Type | 4×2 |
| Steering Wheel Position | Left | |
| Chassis Status | 2200 Single Cab | |
| Chassis Dimensions | Wheelbase (mm) | 5150 |
| Length (mm) | 8905 | |
| Width (mm) | 2460 | |
| Height (mm) | 2820 | |
| Vehicle Weight Parameters | Curb Weight of Chassis (kg) | 5470 |
| Maximum Designed Total Mass (kg) | 22000 | |
| Trailer Total Mass (kg) | 22000 | |
| Vehicle Performance Parameters | Top Speed (km/h) | 105 |
| Maximum Gradeability (%) | / | |
| Cab | Body Model | 2200 Single Cab |
| Seating Capacity | 2 | |
| Engine | Engine Model | YC6A240-33 (Yuchai) |
| Displacement (L) | 7.225 | |
| Engine Power (ps/rpm) | 240 | |
| Maximum Torque (Nm/rpm) | 900 | |
| Brand | Yuchai | |
| Emission Standard | Euro II | |
| Clutch | Clutch Type | Single-Disc Dry Membrane Spring |
| Transmission | Gearbox Model | 8JS105TA |
| Gearbox Brand | Fast Gear | |
| Suspension | Number of Front Leaf Springs | 10 |
| Number of Rear Leaf Springs | 10+8 | |
| Front Axle | Front Axle Load Capacity | 5.5T |
| Front Axle Type | Drum Brake | |
| Rear Axle | Gear Ratio, Load Capacity | 10T/4.875 |
| Rear Axle Type | Drum Brake | |
| Tires | Tire Model | Tubeless Tire (Imperial) 11R22.5 |
| Number of Tires | 6+1 | |
| Frame | Outer Width | 940/865 |
| Longitudinal Beam Cross-section | 250 | |
| Steering Gear | Steering Gear Model | Recirculating Ball Type |
| Fuel Tank | Fuel Tank Capacity & Material | 200L Aluminum Alloy Tank |
| Upper Equipment | ||
| Upper Equipment Parameters | Volume | 10m³ |
| Tank Material & Thickness | Tank Body Material: Q235B Carbon Steel, Thickness: 4mm
Tank Head Material: Q235B Carbon Steel, Thickness: 5mm |
|
| Spray Type | Front Spray and Rear Spread, Duckbill-Type Front Spray Device | |
| Spray Width | 12m | |
| Nozzle Range | 38m | |
| FOB Price | $5000-$7000 | |

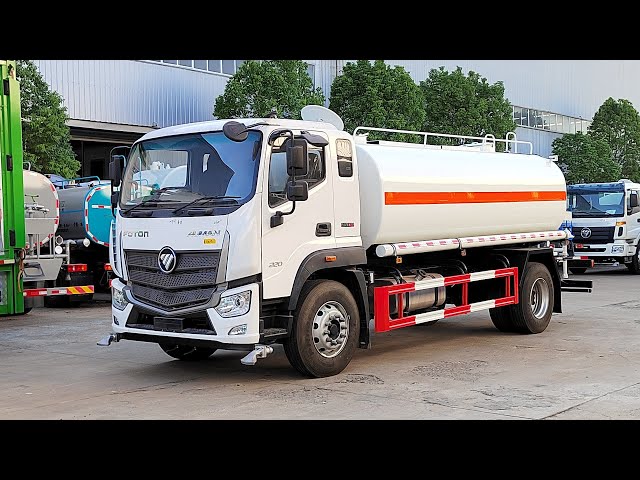

Foton Auman 4×2 Watering Truck 10,000L Water Barrow Sprinkler
Watering Truck with 10,000L capacity for efficient urban and industrial applications
Advanced Road Sprinkler system with 12m spray width and 38m nozzle range
Durable Q235B carbon steel Water Barrow construction for corrosion resistance
Powerful Yuchai engine (240 hp) paired with Fast Gear transmission for reliable performance
Flexible Water Car design suitable for dust suppression, landscaping, and emergency irrigation
Safety-enhanced drum brakes on front/rear axles and Euro II emission compliance
This Foton Auman Watering Truck combines robust engineering with user-friendly features. The 10,000L aluminum tank ensures long operational endurance, while the duckbill-type front spray device guarantees even water distribution. Its 4×2 drive configuration offers excellent maneuverability in urban environments, making it ideal for municipal road maintenance and construction site dust control.
Chassis dimensions: 8905mm length × 2460mm width × 2820mm height
Maximum designed total mass: 22,000kg
Top speed: 105 km/h
Tire specification: 11R22.5 tubeless tires (6+1 configuration)
Aluminum alloy fuel tank (200L capacity)
Ideal for cities, highways, and industrial zones, this Water Car excels in:
Road surface cooling and dust suppression
Landscape watering and emergency fire response
Construction site environmental management
Agricultural field irrigation during droughts
With its high-capacity Water Barrow , precision Sprinkler system, and durable build quality, this Foton Auman model delivers:
Cost-effective water usage through optimized spray patterns
Reduced operational downtime due to robust components
Enhanced safety features for driver and public
Easy maintenance access via open chassis design
Competitive pricing starting at $50,000-$70,000 FOB. Contact us for customized configurations and financing options.
